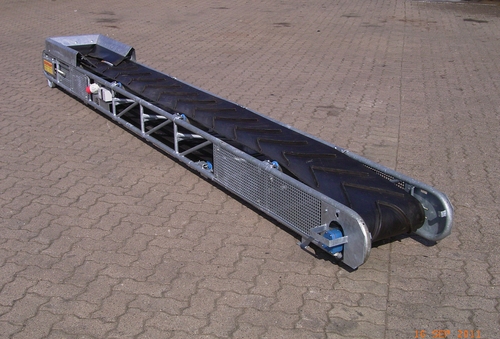

BGLV 400/4

– Torsion-free, lightweight tubular frame construction made of high-quality steel in accordance with DIN 2448 – hot-dip galvanised (rotating parts not galvanised)
– Smooth rubber belt type EP 250/2 – 2:1 or 3:1 NQ endless, hot vulcanised ### Rubber steep conveyor belt type EP 250/2 – 3:1.5 NQ with 15 mm V/Y profile, endless, cold vulcanised – Inner belt plough scraper
– Outer belt rubber strip scraper, spring-loaded ### without outer belt scraper system – 2-piece trough-shaped support roller station, approx. 20° – Feed hopper, 0.8 m long – Protection devices for underbelt rollers and drive section, top, galvanised
– Socket CEE 16 A with motor protection switch – Without emergency stop device (available on request at extra cost) – Without side guide (available on request at extra cost) – Without chassis (available on request at extra cost)

Centre distance (AA) / belt width (GB): 4 m / 400 mm Design dimensions (L/W/H): approx. AA+500 / 520 / 260 mm (outer tube dimensions)
Support roller/axle Ø: 60/12 mm Roller station spacing: approx. 800 – 1,000 mm Tension drum Ø: 140 mm with spindle tensioning station Longitudinal tubes Ø: 34 mm Drive:
Drum motor: Ø 138 mm ### Ø 165 mm, uncoated Protection class: IP 66 Voltage / frequency: 400 V / 50 Hz Drive power: 0.75 kW Speed: v = approx. 0.63 or 0.70 m/s
