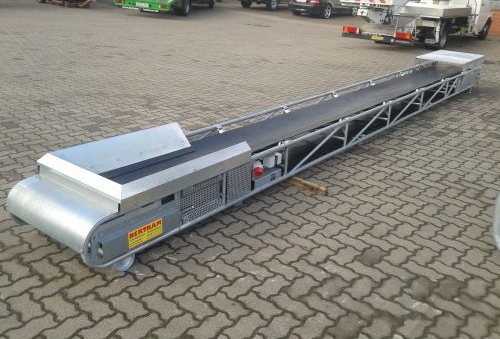

BERTRAM Complete conveyor belt type BGLV 650/6
in hot-dip galvanised design (rotating parts not galvanised) with rubber conveyor belt type EP 250/2 – 2:1 or 3:1 NQ endless
Drum motor Ø 215 mm, non-rubberised Delivery time: 2-3 weeks after receipt of order, approx. Please fill in the following information completely. If you have any questions, we will be happy to advise you personally at the telephone number provided.
– Lightweight tubular steel frame – Hot-dip galvanised (rotating parts not galvanised) – Smooth rubber belt type EP 250/2 – 2:1 or 3:1 NQ endless, hot-vulcanised ### Rubber steep conveyor belt type EP 250/2 – 3:1.5 NQ with 15 mm V/Y profile, endless, cold vulcanised – Inner belt plough scraper
– Outer belt rubber strip scraper, spring-loaded ### without outer belt scraper system – 3-piece trough-shaped support roller station, approx. 25° – Feed hopper, 1.0 m long, galvanised – Protection devices for underbelt rollers and drive section, top, galvanised
– Socket CEE 16 A with motor protection switch – Without emergency stop device (available on request at extra cost) – Without side guide (available on request at extra cost) – Without chassis (available on request at extra cost)
Centre distance (AA) / belt width (GB): 6 m / 650 mm Design dimensions (L/W/H): approx. AA+700 / 900 / 350 mm (outer dimensions of tube)
Support roller/axle Ø: 63.5/20 mm Roller station pitch: approx. 1,000 mm Tension drum Ø: 220 mm with spindle tensioning station Longitudinal tubes Ø: 42 mm
Drive: Drum motor: Ø 215 mm, uncoated Protection class: IP 66 Voltage/frequency: 400 volts/50 Hz Drive power: 2.2 kW Speed: v = approx. 1.25 m/s
Downloads: Data sheet_BGL 650
