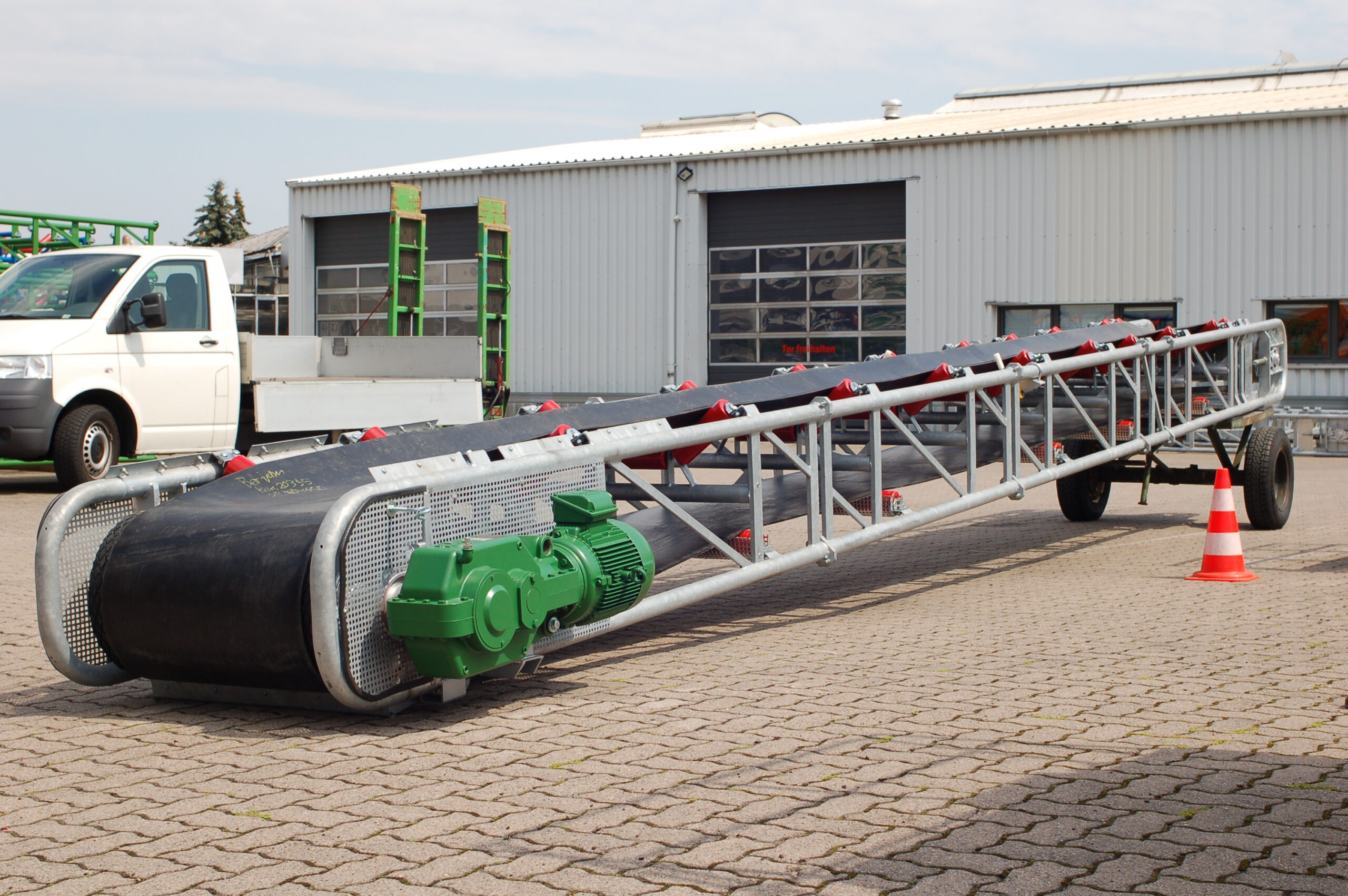

BGMV 500/25

– Torsion-free, solid tubular frame construction made of high-quality steel in accordance with DIN 2448 – Hot-dip galvanised in accordance with DIN EN ISO 1461 (rotating and attachment parts not galvanised)
– 3-piece trough-shaped support roller station, top, approx. 30° – 1-piece trough-shaped support roller station, bottom, approx. 0° – Support rollers with precision deep groove ball bearings type 6204 according to DIN 625 and permanent grease filling with double labyrinth seal to the outside
– One additional centring/steering station, top, bottom – In assemblies consisting of drive and deflection stations with intermediate pieces corresponding to the total length – Sections with stable 2-hole flange connections and fastening material
– Drive and deflection drum according to DIN 2448, double conical turned – Standing and clamping head bearings with cast housing and precision deep groove ball bearings according to DIN 625 and permanent grease filling with external seal and grease nipple
– Inner belt rubber scraper – Standard outer belt rubber strip scraper, weight-loaded and self-adjusting ### without outer belt scraper system
– Rubber smooth belt type EP 400/3 – 4:2 NQ according to DIN 22102, approx. 9 mm thick, endless, hot vulcanised ### Rubber steep conveyor belt type EP 400/3 – 3:1.5 NQ according to DIN 22102 with 15 mm V/Y profile, approx. 7 mm thick, endless, cold vulcanised
– with feed hopper, approx. 1,200 mm long, approx. 230 mm high, galvanised – with anti-interference devices for lower belt rollers and for drive section, top, galvanised – without emergency stop device (available on request at extra cost) – without side guides (available on request at extra cost)
– Without chassis or supports (available on request at extra cost) – Without walkways (available on request at extra cost) – Without cabling, further electrical work, assembly or commissioning

Centre distance (AA) / belt width (GB): 25 m / 500 mm Design dimensions (L/W/H): approx. AA+800 / 800 / 550 mm (outer pipe dimensions)
Support roller/axle Ø: 89/20 mm Roller station pitch, top: approx. 1,000 mm, narrow roller station pitch in the feed area, bottom: approx. 2,000 mm
Deflection drum Ø: 320 mm according to DIN 2448 with spindle clamping device, movable, clamping range approx. 500 mm Drive drum Ø: approx. 320/336 mm according to DIN 2448, with rubber friction lining, knurled
Drive pin Ø: 50 mm with key according to DIN 6885 Longitudinal tubes Ø: 60 mm according to DIN 2448 Drive by: Bevel gear motor Voltage/frequency: 3-phase D/Y 230/400 or 400/690 volts at 50 Hz without backstop or motor brake Protection class: IP 54 or 55 Drive power: 4 kW Output speed: approx. 73 rpm
Speed: v = approx. 1.3 m/s Motor mounting: on the left in the direction of conveyance, pulling Downloads: Data sheet_BGM
