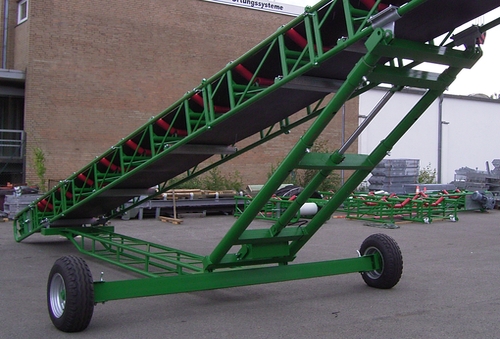

Chassis with manual hydraulics, painted for BGM 800/1000 with AA: 25 m

Chassis with manual hydraulics, painted for BGM 800/1000 with AA: 25 m – manual hydraulics, height adjustment 15 to 30°, pin lock
– Swivel castors for lateral movement up to 90° (for repositioning)
– without outrigger supports (4 pcs.) for stable positioning (available on request at extra cost)
– with support arms (2 pcs.) for fall protection
– additional pipe clamps (6 pcs.) for securing to a conveyor belt
– pneumatic tyres (2 pcs.), without motorised drive
– Not approved for use on public roads
– Special designs (available on request at extra cost)

Particular caution is required when using the swivel castors!
##############################################################
– When the wheels are swivelled, the height adjustment must not be used!
– The axle must be unloaded to prevent uncontrolled tipping.
– Always swivel the wheels in the direction of the discharge.
This ensures even greater stability.
– Immediately after swivelling, insert the locking pins
into the designated holes and secure them.
– Never pull the conveyor belt across the floor at a right angle to the swivelled wheels.
Expected delivery in 60 days.
