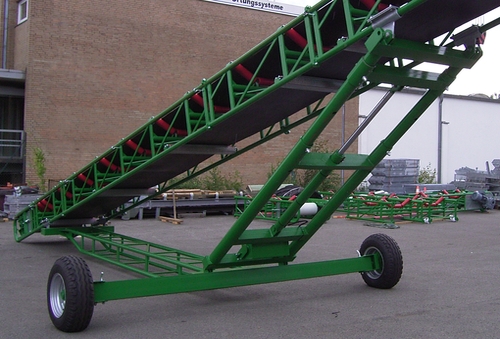

Chassis with manual hydraulics, painted for BGM 800/1000 with AA: 30 m

Chassis with manual hydraulics, painted for BGM 800/1000 with AA: 30 m manual hydraulics, height adjustment 15 to 30°, cotter pin lock – Swivel wheels for lateral movement up to 90° (for changing location)
– without outrigger supports (4 pcs.) for stable standing (available on request at extra cost) – with support arms (2 pcs.) for fall protection – additional pipe clamps (6 pcs.) for attachment to conveyor belt – pneumatic tyres (2 pcs.), without motor drive
– Not approved for use on public roads – Special designs (on request at extra cost) Particular caution is required when using the swivel castors! ############################################################## – Do not use the height adjustment when the castors are swivelled! – The axle must be unloaded to prevent uncontrolled tipping. – Always swivel the castors in the direction of the discharge.
This will ensure even greater stability. – Immediately after swivelling, insert the locking bolts into the designated holes and secure them. – Never pull the conveyor belt across the ground at a right angle to the swivelled wheels. Expected delivery in 60 days.
