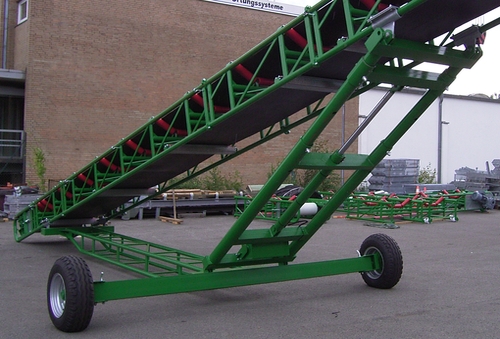

Chassis with hydraulic device, galvanised for BGM 800/1000 with AA: 20 m

Chassis with hydraulic device, galvanised for BGM 800/1000 with AA: 20 m – manual hydraulics, height adjustment 15 to 30°, cotter pin lock – swivel wheels for lateral mobility up to 90° (for changing location)
– without outrigger supports (4 pcs.) for stable standing (on request at extra cost) – additional pipe clamps (4 pcs.) for attachment with conveyor belt – pneumatic tyres (2 pcs.), without motor drive – not approved for use on public roads – special designs (on request at extra cost)

Special care must be taken when using the swivel castors! ##############################################################
– Do not use the height adjustment when the castors are swivelled! – The axle must be unloaded to prevent uncontrolled tipping. – Always swivel the castors in the direction of the discharge.
This will ensure even greater stability. – After swivelling, immediately insert the locking bolts into the designated holes and secure them. – Never pull the conveyor belt across the ground at a right angle to the swivelled wheels. Expected delivery time: 60 days.
