LKW-Time work platform LT-30-TB

LKW Time aerial work platform LT-30 TBA equipment:

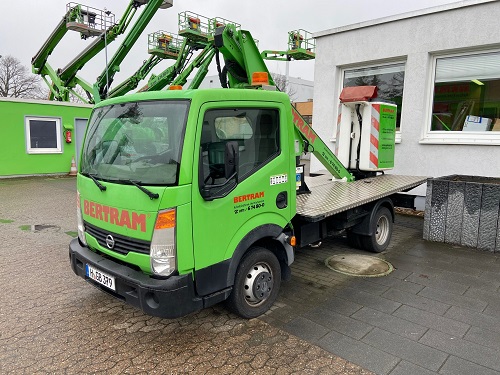

The LKW Ruthmann/Time LT-30-TB work platform is mounted on a compact Nissan Cabstar chassis EURO 5 and is particularly well suited to confined spaces in narrow lanes and at the roadside. What makes the LKW work platform special is that the unit requires no outriggers for working at height. Its unique design and carefully selected components make working at height both safer and faster.
The LKW work platform is fitted with a fibreglass work basket and is insulated to 1 kV. (One kilovolt, abbreviated to kV, corresponds to 1,000 volts)

The built-in 230V socket in the work basket allows electrical equipment to be operated.

An inclinometer monitors the machine’s tilt and provides additional safety for the operator at the work site.

The trailer coupling, available as an optional extra, allows a transport trailer carrying materials for the relevant job or construction site to be towed. Expected to be available in 0 days.

G-01960, MG 379
Special online price!

Sold as seen, year of manufacture 2012
***Commissioned: 03/2012***
For sale, in IST condition

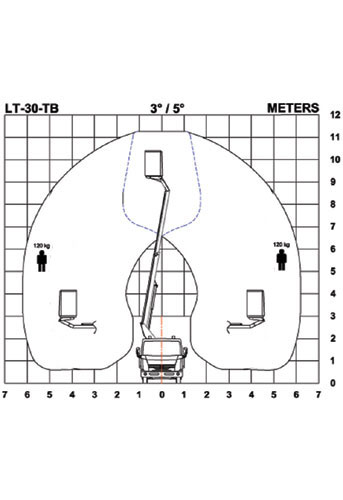

Technical data:
Max. working height: approx. 11.20 m
Max. platform height: approx. 9.20 m
Max. lateral reach: approx. 6.30 m
Max. payload: 120 kg / 1 person
Drive: LKW motor
Total weight: approx. 2,840 kg
-See brochure for technical specifications-

Article number: 120000201
