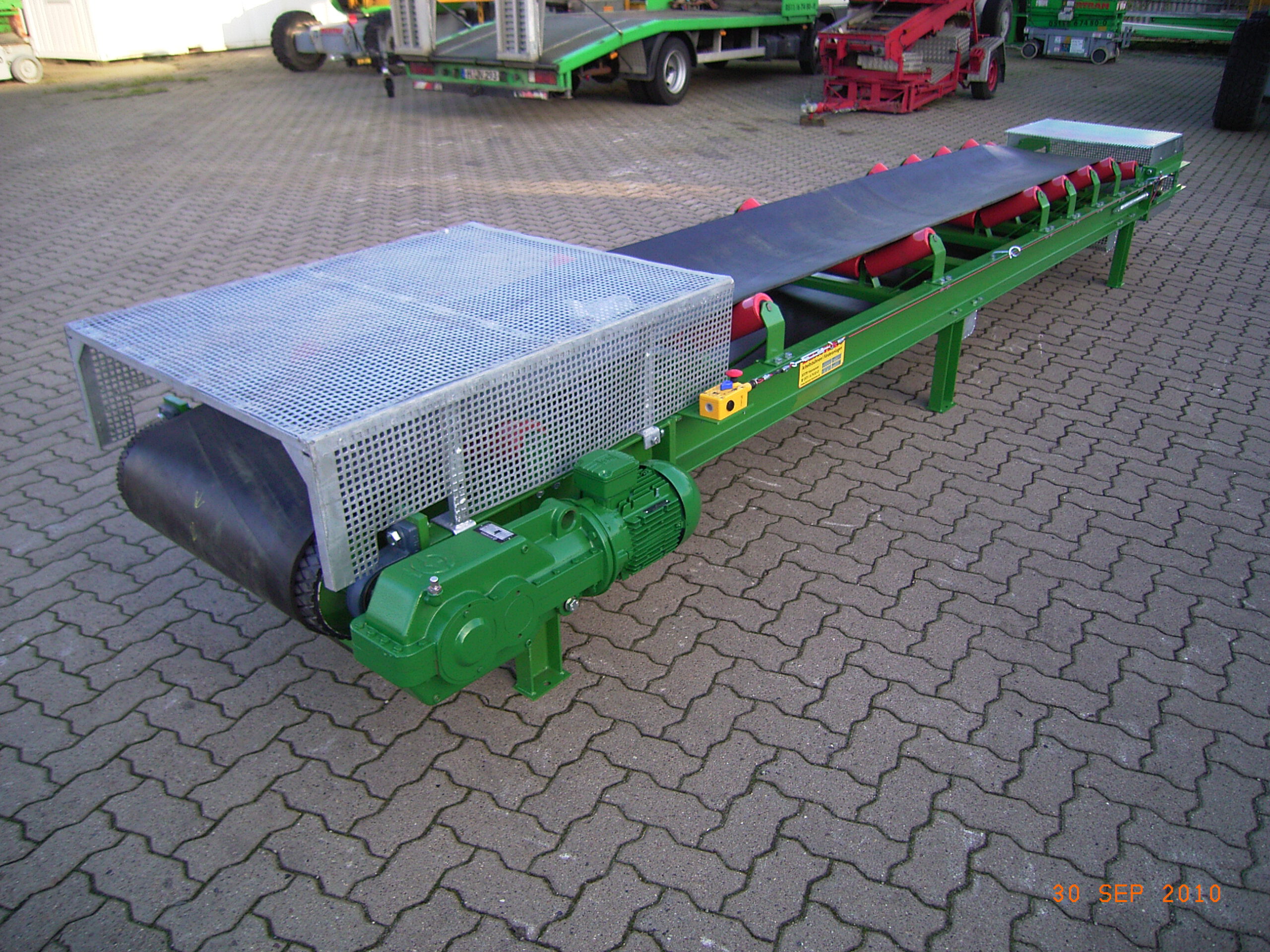

BERTRAM Conveyor belt type NBFSL 500/20 Primer and top coat in RAL 6010 (grass green)
Smooth rubber belt type EP 400/3 – 4:2 NQ according to DIN 22102, approx. 9 mm thick, endless
Bevel gear motor, 4 kW, 102 rpm, approx. 1.3 m/s, left in conveyor direction, pulling Delivery time: 7-8 weeks after receipt of order, subject to change.
Please fill in the following information completely. If you have any questions, we will be happy to advise you personally at the telephone number provided.
– Low assembly conveyor belt system made of U 160 longitudinal beams – Primer and top coat in RAL 6010 (grass green)
– With screw connections and support feet – In assemblies consisting of drive and deflection stations with intermediate pieces corresponding to the total length – Drive and deflection drums according to DIN 2448, double conical turned
– Standing and tensioning head bearings with cast housing and precision deep groove ball bearings according to DIN 625 and permanent grease filling with external seal and grease nipple – Bolted roller stations in the upper and lower runs – 3-fold troughed support roller station, approx. 30°
– Support rollers with precision ball bearings type 6204 and permanent grease filling – Smooth rubber belt type EP 400/3 – 4:2 NQ according to DIN 22102, approx. 9 mm thick, endless, hot vulcanised ### Rubber steep conveyor belt type EP 400/3 – 3:1.5 NQ according to DIN 22102 with 15 mm V/Y profile, approx. 7 mm thick, endless, cold vulcanised – Inner belt rubber strip scraper
– Standard outer belt rubber strip scraper, weight-loaded and self-adjusting ### Without outer belt scraper system – With anti-interference devices for lower belt rollers and for drive section, top, galvanised – With feed hopper, 1.2 m long, galvanised – Without emergency stop device (available on request at extra cost)
– Without cabling, further electrical work or installation Centre distance (AA) / belt width (GB): 20 m / 500 mm
Construction length/width/height: approx. AA + 500 mm / 750 mm / 655 mm (dimensions: up to OK upper support roller) Support roller/axle Ø: 89/20 mm
Roll station pitch: approx. 1,000 mm, narrower in the feed area Deflection drum Ø: 220 mm, with spindle clamping device (approx. 300 mm clamping range) Drive drum Ø: 220 mm, rubberised Drive pin Ø: 50 mm Drive via:
bevel gear motor Voltage/frequency: 3-phase D/Y 230/400 or 400/690 volts at 50 Hz Protection class: IP 54 Drive power: 4 kW Output speed: approx. 102 rpm
Speed: v = approx. 1.3 m/s Motor mounting: on the left in the direction of conveyance, pulling Downloads: Data sheet_NBFS_V2.0 Operating manual NBFS_2.0
