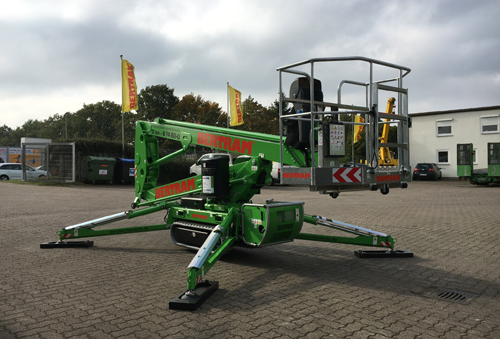

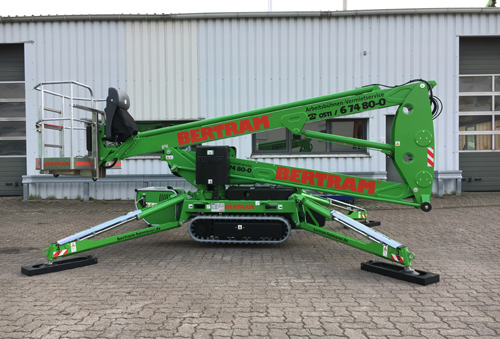

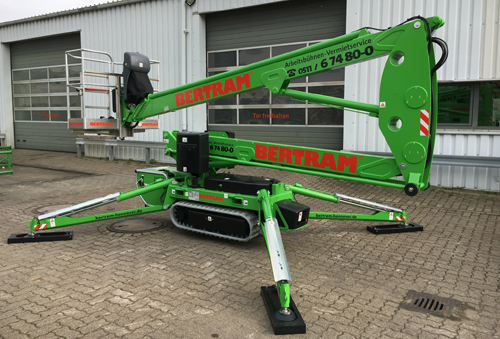

Teupen tracked aerial work platform LEO 15 GT, used, year of manufacture 2016

IG.: 02676 MG.: 096
Sold as seen, year of manufacture 2016

For sale, in IST condition

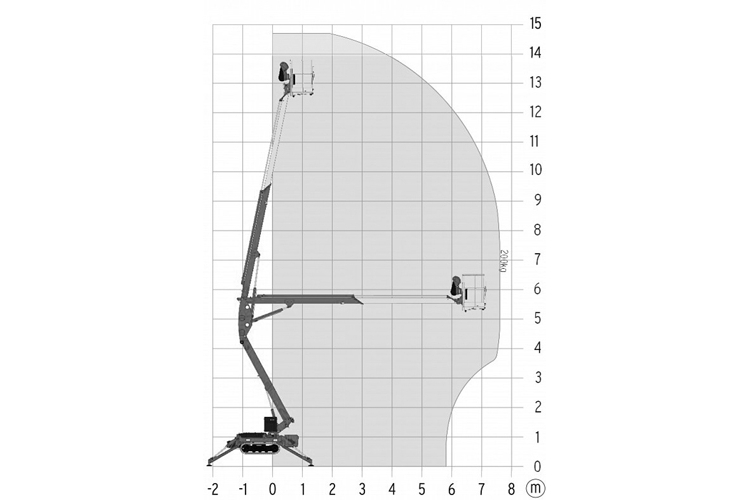

Technical data:
Max. working height: approx. 14.70 m
Max. platform height: approx. 12.70 m
Max. lateral reach: approx. 7.60 m
Max. payload: 200 kg / 2 persons
Drive: Diesel/electric motor
Net weight: approx. 1,780 kg

Features/Description:
-Lifting platform for indoor and outdoor use (2/1 persons)
-Full-text display for ground control
-Proportional control
-Horn
-Tool tray approx. 95 x 40 cm, fixed
-Movable basket arm, vertical 130°
-Forklift pockets on the chassis
-2 x eyelets for PSA in the work basket
-Lifting eyelets
-Fully manoeuvrable at full height
-Tilt alarm 3°
-No overhang when swivelling
-Emergency lowering
-Brake release (manual, electric)
-Emergency hand pump (lifting, slewing, steering)
-Central battery filling (integrated)
-AC Motors Technology
-Non-marking tyres
-Paint finish RAL 6018 (yellow-green)

-For technical data, see brochure-
