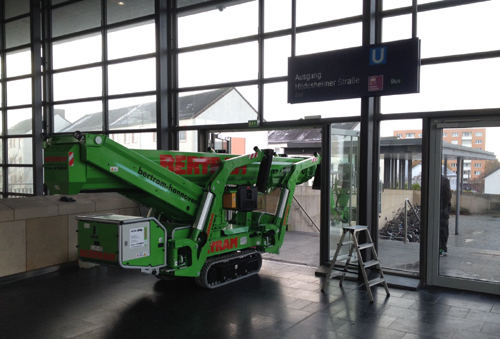

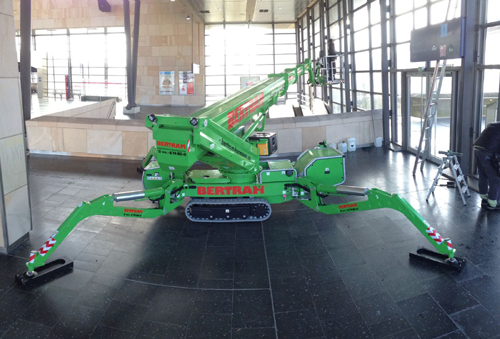

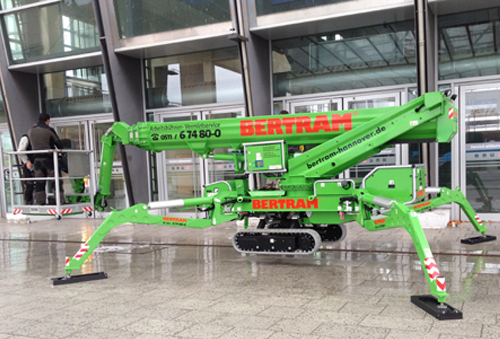

Teupen tracked aerial work platform LEO 23 T

Teupen tracked aerial work platform LEO 23 Specifications:
-High-quality paint finish RAL 6018/7001
-230 V/16 A double socket in the work basket
-Practical tool tray in the work basket
-Full control panel on the chassis
-Stepless proportional controls – multiple functions can be operated simultaneously
-All functions controllable from the basket
-Internally protected power supply for the basket controls
-Powered by a 3-cylinder Kubota diesel engine D1005 E
-Powered by 230V mains supply
-Start-stop system for the internal combustion engine
-Telescopic boom made from highly stable
-steel/aluminium profiles on low-wear inclined rollers, for optimal
load distribution across the telescopic guides
-Safety monitoring for outriggers and overload
-Electro-hydraulic rapid stabilisation via four hydraulic, horizontally and vertically
movable outriggers, thereby ensuring tension-free positioning even on
uneven or sensitive ground
-Track chassis hydraulically adjustable in height and width
-Sensitive radio control for the chassis, outriggers and work platform,
enabling movement with millimetre precision
-Swivel mechanism, consisting of a high-performance slewing ring with
worm gear and hydraulic motor
-Lock blocks – hydraulically unlockable check valves fitted directly to all hydraulic cylinders
, such as lifting and support cylinders, which prevent the machine from sinking in the event of a pipe or
hose rupture
-Protection of the hydraulic system against excessive pressure via
pressure relief valves
-Parallel guidance of the work basket via a hydrostatic compensation system
-The hydraulic system is filled with biodegradable oil as standard
-Oil tank, emergency controls, connecting lines, etc. are installed in a protected manner
-Ergonomically shaped work basket with access door
-Fuzzy logic control
-Fault analysis displayed in plain text
-Variable stabiliser system
-Single-sided narrow stabilisation and double-sided narrow stabilisation
-Erection monitoring
-Automatic stabiliser
-Anchor points for safety harnesses in the work basket
-Basket arm movable within load limit
-Non-marking rubber tracks

Includes optional equipment:
-Protective cover for support cylinder piston rods
-Protective cover for hydraulic connections on telescopic cylinders
-Protective cover for control box
-4 PVC base plates 340 x 850 mm
-Trailer for transporting the unit
