Sinoboom self-propelled articulated telescopic work platform AB15ERJN brand new-brand new-
IG: 3974

Technical specifications:

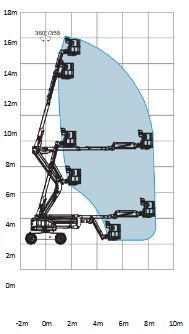

Max. working height: approx. 16.80 m
Max. platform height: approx. 14.80 m
Max. lateral reach: approx. 7.1 m
Max. payload: 230 kg / 2 persons
Transport width: approx. 1.50 m
Power supply: 48V battery incl., automatic charger
Net weight: approx. 8,500 kg

Features:
-Lifting platform for indoor and outdoor use
-Proportional control
-Simultaneous travel and slewing of the upper carriage possible
-No overhang
-Battery charge level indicator on both control panels
-Automatic basket levelling
-Inclinometer 3°
-Rotating work basket
-Movable basket arm, vertical 132.2°
-Movable basket arm, horizontal 180° (3D basket arm)
-Towing and crane eyes
-Non-marking tyres

-For technical data, see brochure-
