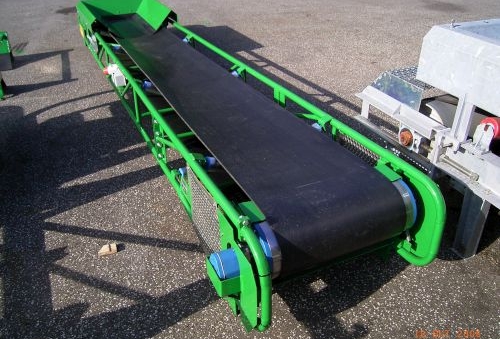

BERTRAM Complete conveyor belt type BGLL 500/6
Primer and top coat in RAL 6010 (grass green) with rubber conveyor belt type EP 250/2 – 2:1 or 3:1 NQ endless
Drum motor Ø 138 mm, non-rubberised Delivery time: 2-3 weeks after receipt of order, approx. Please fill in the following information completely. If you have any questions, we will be happy to advise you personally at the telephone number provided.
– Lightweight tubular steel frame – Primer and top coat in RAL 6010 (grass green) – Smooth rubber belt type EP 250/2 – 2:1 or 3:1 NQ endless, hot vulcanised ### Rubber steep conveyor belt type EP 250/2 – 3:1.5 NQ with 15 mm V/Y profile endless, cold vulcanised – Inner belt plough scraper
– Outer belt rubber strip scraper, spring-loaded ### without outer belt scraper system – 2-piece trough-shaped support roller station, approx. 20° – Feed hopper, 1 m long – Protection devices for lower belt rollers and drive section, top, galvanised
– Socket CEE 16 A with motor protection switch – Without emergency stop device (available on request at extra cost) – Without side guide (available on request at extra cost) – Without chassis (available on request at extra cost)
Centre distance (AA) / belt width (GB): 6 m / 500 mm Construction dimensions (L/W/H): approx. AA+700 / 740 / 305 mm (outer dimensions of tube)
Support roller/axle Ø: 60/12 mm Roller station pitch: approx. 1,000 mm Tension drum Ø: 220 mm with spindle tensioning station Longitudinal tubes Ø: 34 mm
Drive: Drum motor: Ø 215 mm, uncoated Protection class: IP 66 Voltage/frequency: 400 volts/50 Hz Drive power: 2.2 kW Speed: v = approx. 1.25 m/s
Downloads: Data sheet_BGL 500
